Simple Operation for Printed Sheets

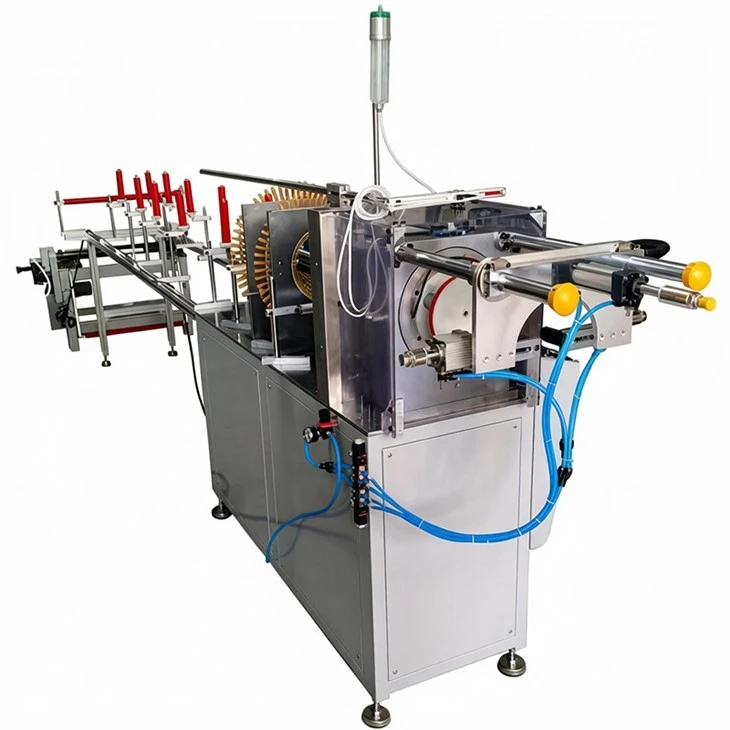

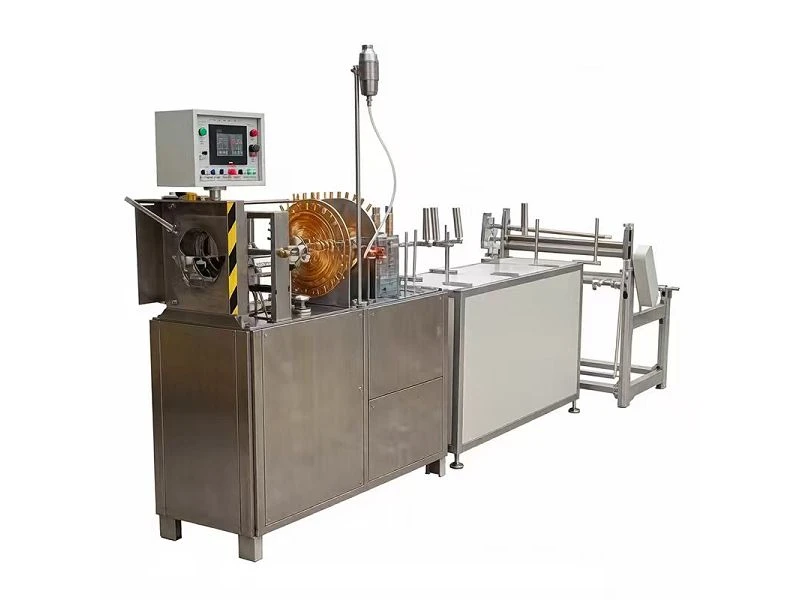

This is the PVC PET Sheet Cylinder Tube Forming Machine. It is a semi-automatic model. People also call it a semi-automatic printed tube machine. It is made for single sheets and printed materials. The operation is very simple. Your staff can learn it fast. We use a PLC control system with a smart touch screen. The screen shows the operation time and production count. Everything is clear and easy to read. This machine also has an automatic spray device for APET. It keeps the bonded area clear with no white lines.
Solves the PET White Line Problem
Many customers ask us about PET bonding. They worry about white lines at the glue joint. This PVC PET Sheet Cylinder Tube Forming Machine is the answer. We upgraded the control system just for this issue. It uses a microcomputer PLC system with no contact points. You set the temperature and time on the screen. The machine is very reliable. Old relay-controlled machines often break down. But this one keeps running. If you are making PVC tubes, it gives full glue coverage. The bonded area looks perfect every time.
Flexible Sizing for Any Order
This PVC PET Sheet Cylinder Tube Forming Machine lets you change tube sizes easily. You do not need special tools. Just adjust the machine and you are ready. It works best for single sheets that are already cut. If you get an order for printed sheets, this machine is your answer. It has a precision glue system. The glue goes on evenly. The finished tubes have very consistent sizes. It makes 700 to 800 tubes per hour. That is a great speed for small and medium orders.
Technical Parameters
|
Parameter |
Specification |
|
Machine Model |
TI-210YH |
|
Height/Length |
180/380mm |
|
Diameter |
35-200mm |
|
Power |
1.5kw |
|
Air Pressure |
3-6kg/㎡ |
|
Work Efficiency |
700-800/h |
|
Machine Size |
700*650*1000mm |
Our Factory-Direct Promise
Taigong Machinery handles design, production, sales, and service. We sell factory-direct. This means no middlemen. You get a better price and direct technical support. We think about your needs first. Our team is always ready to help. You are welcome to visit our factory and see a sample run. We serve customers all over the world. Our years of experience show in every machine we make.
