Three Times Faster Than Hand Work

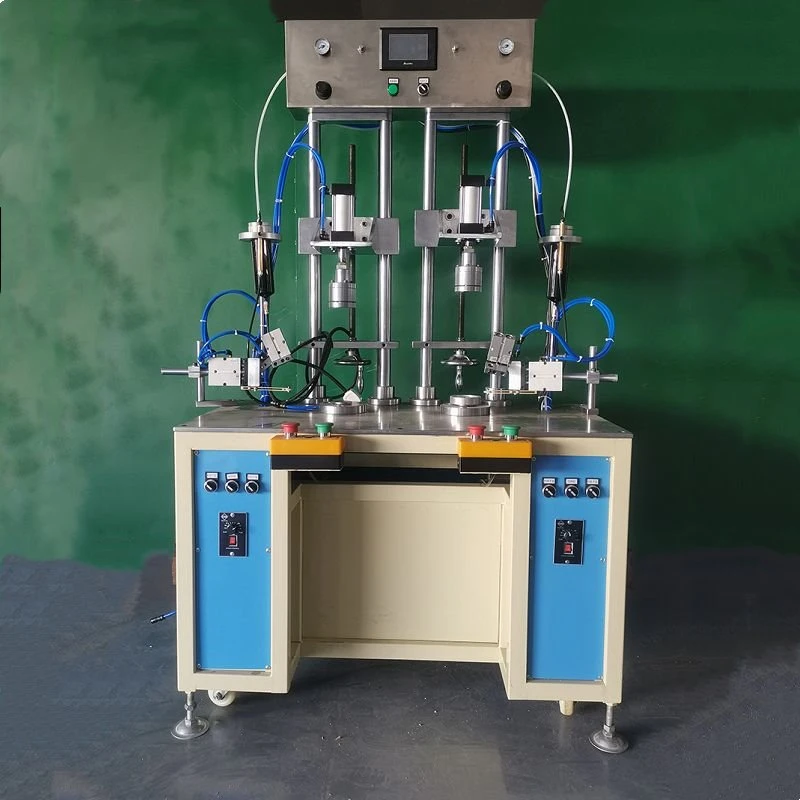

This is the Dual-station blister cap bonding machine. We made it to replace slow hand work. Hand gluing has many problems. The glue is uneven. Fingers leave marks. The caps go on crooked. And it is slow. This machine fixes all of that. It uses a microcomputer control system. The glue is applied automatically. The positioning is precise. The worker just places the tube and the cap. The machine does the rest. Our record for gluing a cap is 1.5 seconds. That is more than three times faster than hand work.
Two Stations for Flexible Output
This Dual-station blister cap bonding machine has two workstations. One worker can run both stations. Or two workers can work together. The production speed is 10 to 20 pieces per minute. That speed depends on the worker. When orders are big, workers can go faster. When orders are small, the machine runs slower. You do not waste time or materials. The machine works with many tube sizes. Diameter from 38mm to 200mm. Length from 20mm to 450mm. Material thickness from 0.18mm to 0.8mm.
Solves Four Hand-Work Problems
We designed this Dual-station blister cap bonding machine to solve real problems. First, uneven glue. The automatic system gives a perfect coat every time. Second, finger marks. Workers do not touch the glue. Third, crooked caps. The machine positions them precisely. Fourth, slow speed. The machine works much faster. This machine also works for both bottom caps and bottom sheets. You choose what works for your product. The core is a Siemens PLC system. We use Siemens because it is reliable. We tested it for thousands of hours. It keeps running without issues.
Technical Parameters
|
Parameter |
Specification |
|
Standard Model |
TI-200S② |
|
Working Voltage |
220V 50HZ |
|
Cylinder Diameter |
38mm-200mm |
|
Cylinder Length |
20mm-450mm |
|
Bottom Cap Height |
<50mm |
|
Material Thickness |
0.18mm-0.8mm |
|
Control System |
Siemens PLC |
|
Production Speed |
10-20pcs/minute |
Our Factory-Direct Service
Taigong handles design, production, sales, and service. We sell factory-direct. This gives you a better price. It also gives you direct technical support. Choosing us is just the start. Good service is the real goal. This machine helps you move from hand work to semi-automatic production. You get better quality and faster output. Your workers will thank you. Your customers will see the difference.
